ARCTIC HEAT PUMP

ONE heat pump system that can provide ALL the heating and cooling your hybrid spa requires, and saving 60-75% compared to traditional heating systems!

ARCTIC HEAT PUMP

ONE heat pump system that can provide ALL the heating and cooling your hybrid spa requires, and saving 60-75% compared to traditional heating systems!

WHAT IS AN
ARCTIC HEAT PUMP?

Unlike an electric or gas heater, a pool heat pump’s output is variable depending on two factors – outdoor temperature and the entering water temperature. The colder it gets the less energy is in the air and thus the heat pumps out put declines. The same is true with the water temperature, the hotter the pool/spa water temperature the less energy the pool heat pump will be able to produce.

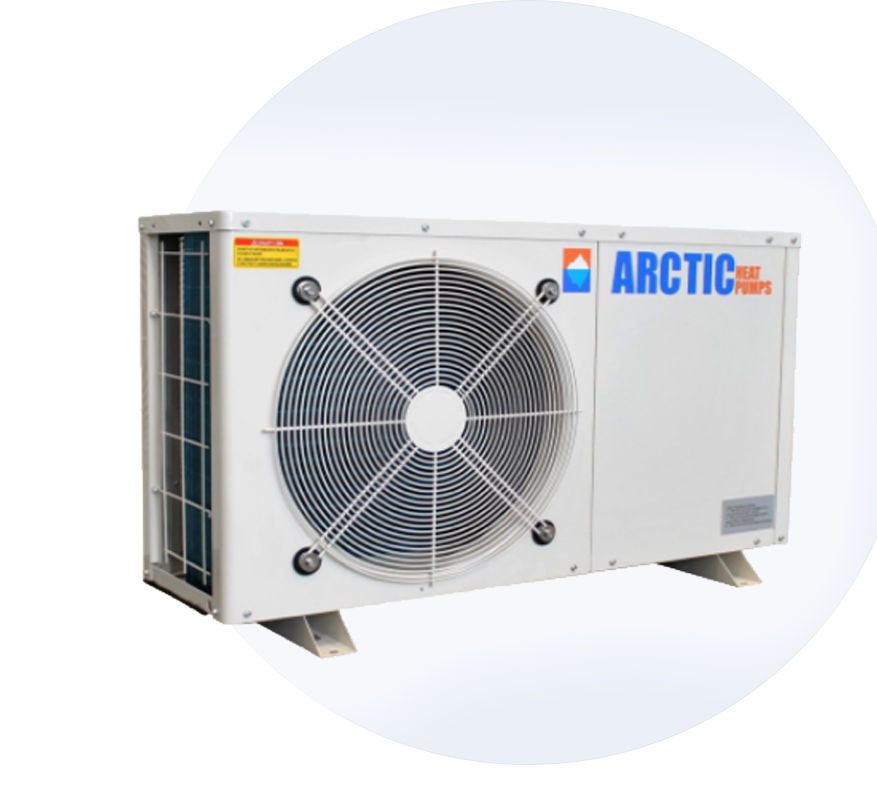

Arctic Heat Pump
Arctic Heat Pump
Arctic Heat Pump

WHAT IS AN
ARCTIC HEAT PUMP?

Unlike an electric or gas heater, a pool heat pump’s output is variable depending on two factors – outdoor temperature and the entering water temperature. The colder it gets the less energy is in the air and thus the heat pumps out put declines. The same is true with the water temperature, the hotter the pool/spa water temperature the less energy the pool heat pump will be able to produce.

COST EFFECTIVE
& ECO-FRIENDLY

It won’t take long to start seeing the energy savings from your new hybrid spa! Compared to propane, electric energy and natural gas, the Arctic Heat Pump outperforms all by a landslide.

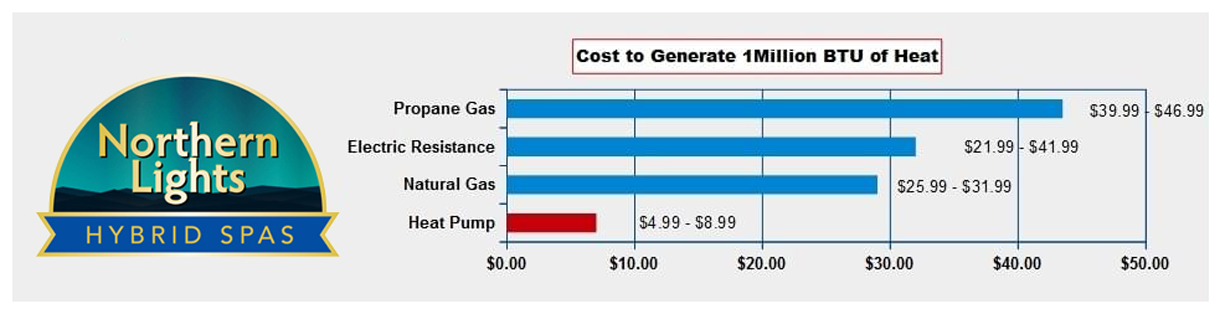

Energy savings Chart

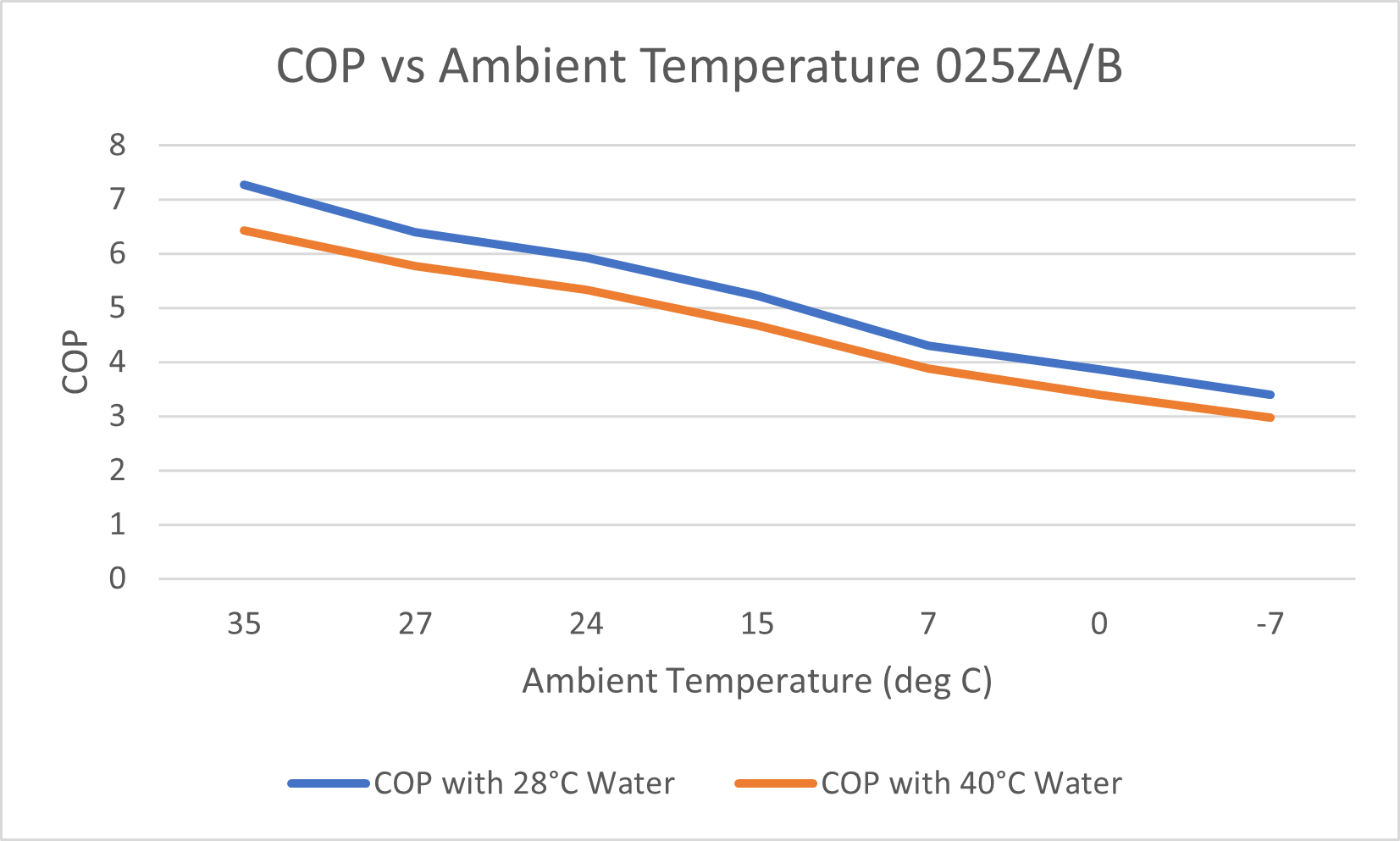

COP Graph

The orange graph and table above show that even at -7ºC (19ºF) ambient air temperature and a very hot 40ºC (104ºF) water temperature the ARCTIC 025ZA/B heat pump can still deliver 6.5 kW of heat into the water, while only consuming 2.19 kW itself, for a COP of 2.97. Other units produce similar COP results, +/- 5%. These are the worst conditions and at higher ambient temperatures or lower water temperatures, efficiencies just get better. During a fresh fill, for example, the water temperature is much lower (such as 50ºF (10ºC)) and with high ambient air temperatures you can expect significant improvement on the COP (over 6), during the initial heating of the cold water. However, in the longer term, most of the heat needed just to maintain the water at its normal temperature (28ºC for a pool and 39ºC for a hot tub) and the blue and orange graphs apply. The heat pump will then deliver an equal amount of energy to the water, as the water gives off due to heat losses.

TECH SPECS
AIR TO WATER SPA HEAT PUMP

Model (Metal Spraying Shell)  ARCTIC 015ZA/B
 Power Supply V/PH/Hz 220/1/50 (60)
Heating Capacity
Ranger
kW 1.3~5.2
BTU/h 4436~17742
COP Ranger W/W 3.6~13
Heating Capacity (1) kW 5.2
BTU/h 17742
COP (1)  A:30/W:28 W/W 6.2
Input Power (1) kW 0.84
Input Current (1) A 3.8
Heating Capacity (2) kW 5.2
BTU/h 17742
COP (2)  A:24/W:28 W/W 5.60
Input Power (2) kW 0.93
Input Current (2) A 4.2
Heating Capacity (3) kW 5.2
BTU/h 17742
COP (3)  A:15/W:28 W/W 4.8
Input Power (3)  kW 1.08
Input Current (3) A 4.9
Heating Capacity (4) kW 4.8
BTU/h 16378
COP (4)  A:7/W:28 W/W 4.2
Input Power (4) kW 1.14
Input Current (4) A 5.2
Heating Capacity (5) kW 4.3
BTU/h 14672
COP (5)  A:0/W:28 W/W 3.72
Input Power (5) kW 1.16
Input Current (5) A 5.3
Heating Capacity (6) kW 3.6
BTU/h 12283
COP (6)  A:-7/W:28 W/W 3.16
Input Power (6) kW 1.14
Input Current (6) A 5.2
 Compressor   Rotary
 Compressor Qty   1
 Fan Qty   1
 Noise dB(A) 48
 Water Outlet/Water Inlet inch 1–1/2"
 Water Flow Volume GPM 16
 Water Pressure Drop PSI 1.7
 Fan Direction   horizontal
 Refrigerant Type   R410A
 Unit Net Dimensions (L/M/H) mm 930/360/550
 Unit Shipping Dimensions (L/M/H) mm 1035/395/585
 Net Weight kg 55
 Shipping Weight kg 58

Note:

  1. ①Heating:Outdoor air temp:30℃/24℃,Outlet water temp:28℃,Input water temp:26℃;
  2. ②Heating:Outdoor air temp:24℃/19℃,Outlet water temp:28℃,Input water temp:26℃;
  3. ③Heating:Outdoor air temp:15℃/12℃,Outlet water temp:28℃,Input water temp:26℃;
  4. ④Heating:Outdoor air temp:7℃/6℃,Outlet water temp:28℃,Input water temp:26℃;
  5. ⑤Heating:Outdoor air temp:0℃/-℃,Outlet water temp:28℃,Input water temp:26℃;
  6. ⑥Heating:Outdoor air temp:-7℃/-℃,Outlet water temp:28℃,Input water temp:26℃;

ARCTIC HEAT PUMP

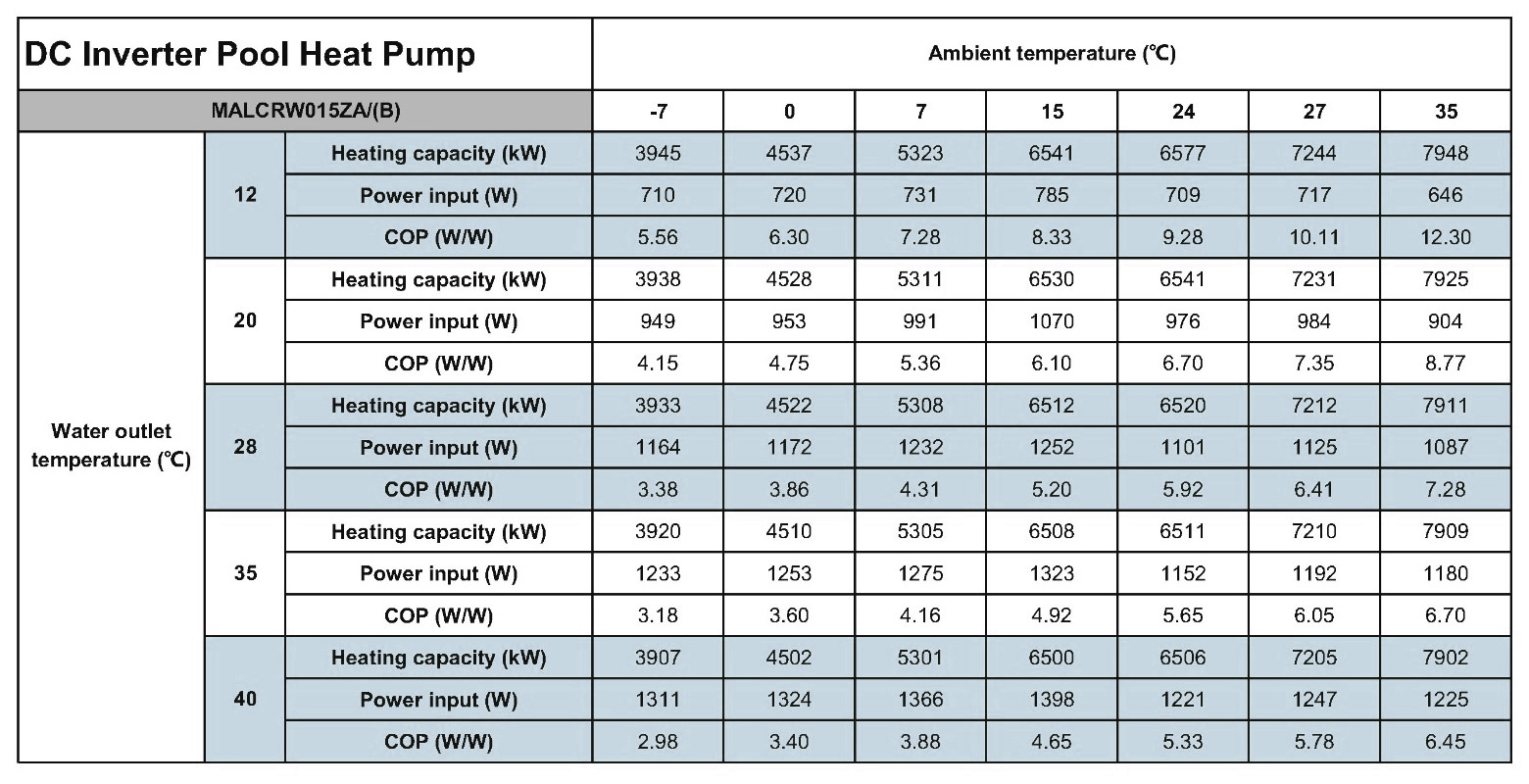

PERFORMANCE TABLES

ARCTIC HEAT PUMP PERFORMANCE TABLES

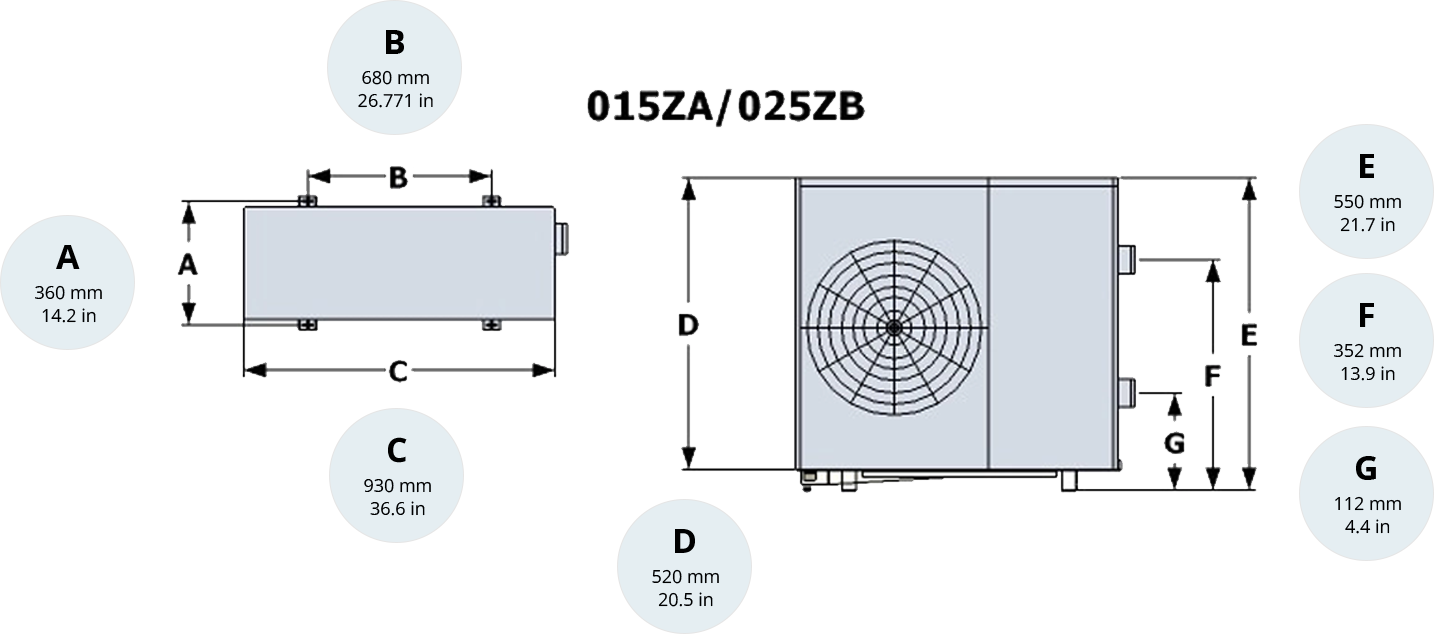

ARCTIC HEAT PUMP DIMENSIONS
& foot hole separation

ARCTIC HEAT PUMP PERFORMANCE TABLES

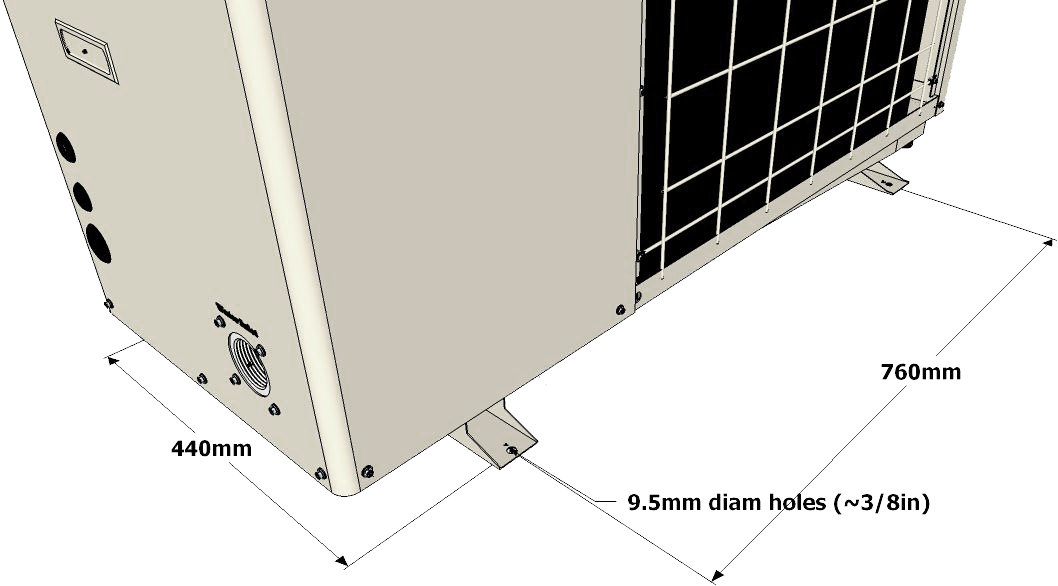

Footholes
